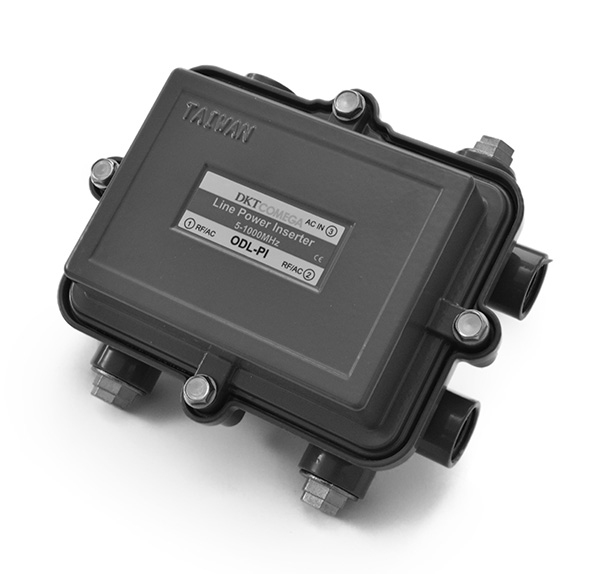

ODS 1G serija

Klasična zunaja pasiva 5/8 1G

  • A360 aluminium alloy housing with weather-resistant protective powder coating
  • Pressure test at 15psi for 60 seconds under water
  • Operating temperature -40C - +60C
  Power Splitter Directional Coupler Power Inserter
Type no. ODS 1G 02 ODS 1G 03 ODS 1G 03A ODC 1G 108 ODC 1G 112 ODC 1G 116 ODL 1G PI
Insertion loss IN-OUT (5-500 MHz) 3.7 dB 5.8 dB 3.7/6.9 dB 1.8 dB 1.1 dB 0.7 dB 0.3 dB
Insertion loss IN-OUT (500-1000 MHz) 4.7 dB 6.3 dB 4.3/7.6 dB 2.3 dB 1.8 dB 1.4 dB 0.7 dB
Tap loss IN-TAP (5-500 MHz) - - - 8 ± 1dB 12 ± 1dB 16 ± 1dB -
Tap loss IN-TAP (500-1000 MHz) - - - 8 ± 1.5 dB 12 ± 1.5 dB 16 ± 1.5 dB -
Isolation OUT-TAP (5-500 MHz) - - - 28 dB 30 dB 32 dB -
Isolation OUT-TAP (500-1000 MHz) - - - 23 dB 25 dB 27 dB -
Isolation OUT-OUT (5-500 MHz) 34 dB 34 dB 34 dB - - - 77 dB
Isolation OUT-OUT (500-1000 MHz) 27 dB 27 dB 27 dB - - - 53 dB
Return loss IN, OUT, TAP* (5-1000 MHz) Cat. B Cat. B Cat. B Cat. B Cat. B Cat. B Cat. B
Max. Power passing 10A, 90VAC 15A, 90VAC
RFI > 100 dB
Impedance 75 Ohm -
Connector IN, OUT, TAP 5/8"
Dimensions 136.7 x 123.7 x 72 mm
Weight 600 g 635 g 625 g 600 g 600 g 600 g 600 g
