Basic odvzemniki

Z vrhunskimi specifikacijami , stroškovno privlačna vključuje 1- do 8-vejne odvzemnike.

Uporabljeni so lahki materiali, da se omogoči enostavno rokovanje . Montažnost vertikalne in horizontalne montaže.

1-way taps

Type no. Tap loss
IN-Tap (dB)
Freq. range (MHz)
Insertion loss
IN-OUT (dB)
Freq. range (MHz)
Isolation
OUT-TAP (dB)
Freq. range (MHz)
Isolation
TAP-TAP (dB)
Freq. range (MHz)
   5-65 65-470  470-862 862-1000  5-470 470-862  862-1000  5-1000  5-600 600-860 860-1000
BTE 1-6 6.8 6.5 6.6 6.7 2.2 2.3 2.4 30 - - -
BTE 1-9 9.0 8.9 9.0 9.0 1.1 1.3 1.5 31 - - -
BTE 1-10 10.4 10.2 10.0 9.8 0.7 1.0 1.3 33 - - -
BTE 1-12 12.3 12.2 12.1 12.4 0.5 0.6 0.9 32 - - -
BTE 1-14 13.8 13.8 14.0 14.1 0.5 0.6 0.8 37 - - -
BTE 1-16 15.8 15.7 15.9 16.2 0.5 0.6 0.7 39 - - -
BTE 1-20 20.0 20.0 19.9 20.1 0.6 0.7 0.9 39 - - -
BTE 1-24 23.6 23.5 23.6 24.0 0.5 0.6 0.8 40 - - -
BTE 1-28 27.6 27.8 28.6 29.1 0.6 0.7 0.7 42 - - -

2-way taps

Type Tap loss
IN-Tap (dB)
Freq. range (MHz)
Insertion loss
IN-OUT (dB)
Freq. range (MHz)
Isolation
OUT-TAP (dB)
Freq. range (MHz)
Isolation
TAP-TAP (dB)
Freq. range (MHz)
   5-65 65-470  470-862 862-1000  5-470 470-862  862-1000  5-1000  5-600 600-860 860-1000
BTE 2-8 8.5 8.5 8.5 8.5 3.2 3.5 3.7 35 44 46  41
BTE 2-10 10.5 10.5 10.3 10.2 1.6 2.3 2.8 35 43 48 45
BTE 2-12 12.5 12.4 12.3 12.4 1.1 1.4 1.6 35 43 50  47
BTE 2-14 14.5 14.4 14.5 14.7 1.2 1.4 1.5 35 45 50 48
BTE 2-16 16.5 16.4 16.4 16.4 1.0 1.2 1.3 38 54 54  50
BTE 2-18 17.9 17.9 18.1 18.5 0.8 1.1 1.2 38 60 55  51
BTE 2-20 20.0 20.0 19.9 20.0 0.8 1.1 1.3 40 60 62  61
BTE 2-24 23.9 23.9 24.0 24.1 0.8 1.2 1.3 40 63 63 61
BTE 2-26 26.4 26.1 25.8 26.1 0.8 1.2 1.3 40 67 63 61
BTE 2-28 28.0 27.6 27.3 27.5 0.9 1.2 1.3 42 60 59 59

4-way taps

Type Tap loss
IN-Tap (dB)
Freq. range (MHz)
Insertion loss
IN-OUT (dB)
Freq. range (MHz)
Isolation
OUT-TAP (dB)
Freq. range (MHz)
Isolation
TAP-TAP (dB)
Freq. range (MHz)
   5-65 65-470  470-862 862-1000  5-470 470-862  862-1000  5-1000  5-600 600-860 860-1000

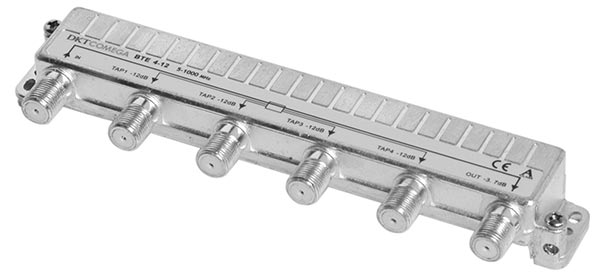

BTE 4-10 10.7 10.7 10.8 10.8 4.5 5.1 5.9 30 36 33 32
BTE 4-12 12.3 12.2 12.2 12.3 3.8 4.5 5.3 32 39 35 34
BTE 4-14 14.1 14.1 14.4 14.6 2.6 2.7 3.1 32 43 41 41
BTE 4-16 16.2 16.2 16.2 16.4 2.3 2.4 2.7 33 46 46 46
BTE 4-18 18.0 18.0 18.1 18.1 1.8 1.9 2.3 35 48 48 48
BTE 4-20 20.0 20.0 20.1 20.3 1.9 2.1 2.6 37 59 53  53
BTE 4-24 24.2 24.1 24.0 24.2 1.6 1.7 2.1 38 55 55  55
BTTE 4-12* 12.0 12.1 12.2 12.3 - - - - 39 36 35

6-way taps

Type Tap loss
IN-Tap (dB)
Freq. range (MHz)
Insertion loss
IN-OUT (dB)
Freq. range (MHz)
Isolation
OUT-TAP (dB)
Freq. range (MHz)
Isolation
TAP-TAP (dB)
Freq. range (MHz)
   5-65 65-470  470-862 862-1000  5-470 470-862  862-1000  5-1000  5-600 600-860 860-1000
BTE 6-12 12.4 12.3 12.4 12.8 3.4 3.7 3.9 34 35 35 33
BTTE 6-14* 14.0 14.1 14.2 14.3 - - - - 41 42 40

8-way taps

Type Tap loss
IN-Tap (dB)
Freq. range (MHz)
Insertion loss
IN-OUT (dB)
Freq. range (MHz)
Isolation
OUT-TAP (dB)
Freq. range (MHz)
Isolation
TAP-TAP (dB)
Freq. range (MHz)
  5-65 65-470 470-862 862-1000 5-470 470-862 862-1000 5-1000 5-600 600-860 860-1000
BTE 8-16 16.3 16.1 16.2 16.3 5.0 5.2 5.7 26 37 36 34
BTE 8-20 20.2 19.9 19.7 20.0 3.8 3.7 4.2 32 40 37 36
BTTE 8-15* 15.0 15.1 15.1 15.2 - - - - 41 39 34

* BTTE internally terminated, no OUT port
