CATV filtri

  • LP(F), LTE - nizko prepustni / low pass
  • HP(F), LTE - visoko prepustni / high pass
  • PP - pasovno prepustni / band pass
  • PZ, BSF - pasovno zapornini / band stop
  • BRF - pasovno zaporni / band reject
Type Data
LPF 444 Pass 5 - 444 MHz, Stop 476 - 1006 MHz
LTE 694T Pass 5 - 694 MHz, Stop 726 - 1006 MHz F-F

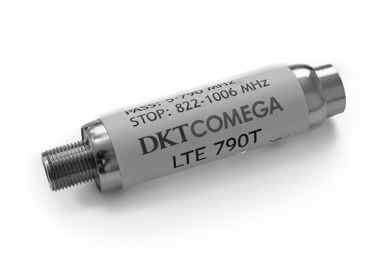

LTE 790T Pass 5 - 790 MHz, Stop 822 - 1006 MHz F-F
LTE 790 IEC-S Pass 5 - 790 MHz, Stop 822 - 1006 MHz IEC-IEC
LTE 790 IEC-A Pass 5 - 790 MHz, Stop 822 - 1006 MHz IEC-IEC Angled



Return path Stop filter

Type Data
HPF 85 Pass 87 - 1006 MHz, Stop 5 - 65 MHz
HPF 118 Pass 118 - 1006 MHz, Stop 5 - 87 MHz
HPF 258 Pass 258 – 1300 MHz, Stop 5 - 204 MHz



Band stop filter

Type Data

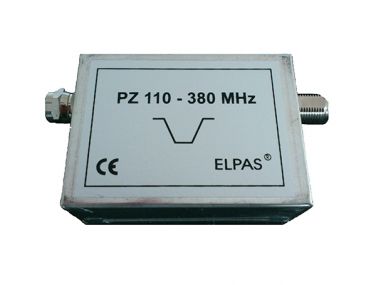

PZ 110-380 Pass 5 - 100 MHz, Stop 110 - 380 MHz, Pass 400 - 1000 MHz
PZ 220-370 Pass 5 - 202 MHz, Stop 220 - 370 MHz, Pass 400 - 1000 MHz
BSF 518-822 Pass 5 - 518 MHz, Stop 540 - 782 MHz, Pass 822 - 1300 MHz
BSF 606-822 Pass 5 - 606 MHz, Stop 638 - 782 MHz, Pass 822 - 1300 MHz
BSF 678-822 Pass 5 - 678 MHz, Stop 714 - 782 MHz, Pass 822 - 1300 MHz
