Tangram
TANGRAM – video platforma je profesionalna glavna postajaHU). Uporabimo lahko do 6+1 različnih modulov po eni šasiji GT01 – moduli imajo različne funkcije in lahko pripravimo vse potrebno procesiranje kot TV preko IP mrež, IPTV rešitve kot VOD, TV in OTT ali Web TV.
Pregled Tangram produktov

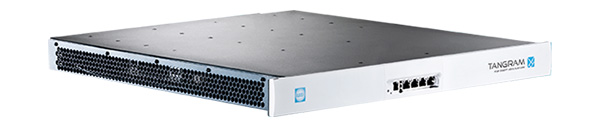

GT 01 Osnovno ohišje – šasija
GT 01W 230V (tip GT 01 0 230V brez Switcha) in GT 01W 048 (tip GT 01 0 048 brez Switch); z napajanjem 230V oz. 48V vključno Switch na zadnji strani (GT 11)in ventilator. Šasija GT 01 podpira redundand koncept (1+1, n+1) (GT55W0230 in GT55W0048– redundand usmernika)
Priponke
Tangram Edge Moduli

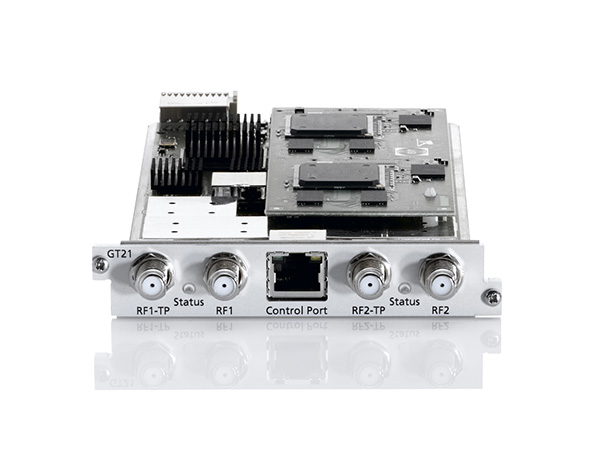

GT21W – IP to 6xPAL kanalov po modulu
- High quality IP to analogue PAL/SECAM/NTSC modulation
- Up to 6 analogue channels on 2 RF outputs
- Outstanding signal parameters by direct digital modulation
- HD to SD downscaling functionality
- MPEG-2 H.262 and MPEG-4 H.264 decoding (SD & HD)
- For measurement / monitoring test ports of the output signal
- Temperature and output level monitoring
- RTP/ IP input streaming with FEC error correction
Priponke

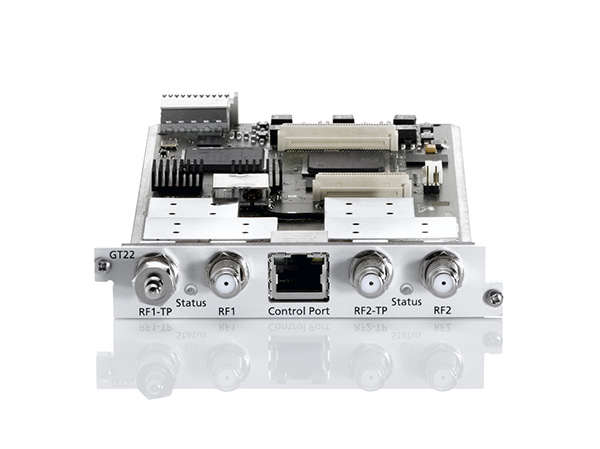

GT22C - IP to 8x FM
- High quality IP to analogue FM modulation
- Up to 8 FM channels on 1 RF output
- Advanced MPEG decoding
- Outstanding signal parameters by direct digital modulation
- High density 48 FM channels in 1 RU
- RTP/ IP input streaming with FEC error correction
- RDS extraction and insertion
- For measurement / monitoring test ports of the output signal
Priponke

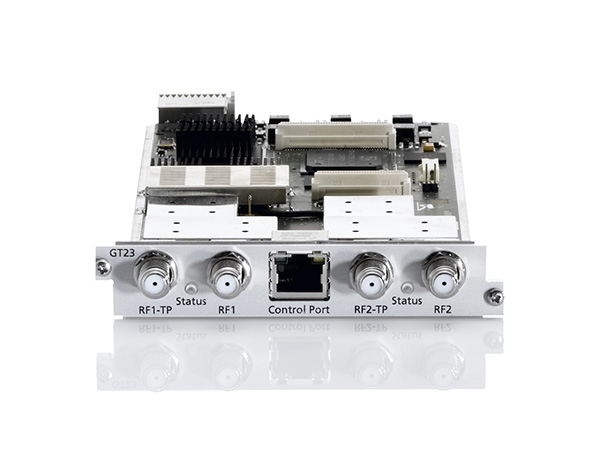

GT23W – IP to 12xQAM
- High quality IP to QAM modulation
- Up to 12 QAM channels on 2 RF outputs
- High density 48 QAM channels in 1 RU
- For measurement / monitoring test ports of the output signal
- DVB CSA Simulcrypt scrambling
- RTP/ IP input streaming with FEC error correction
- DVB/ARIB transport stream processing
- QAM channels individually switchable on/off
Priponke

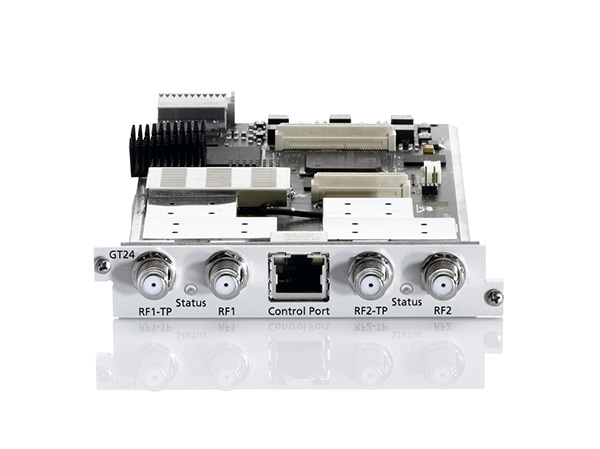

GT24W – IP to 8xCOFDM
- High quality IP to COFDM modulation
- Up to 8 COFDM channels on 2 RF outputs
- Outstanding signal parameters by direct digital modulation
- RTP/ IP input streaming with FEC error correction
- High density 48 COFDM channels in 1 RU
- DVB/ARIB transport stream processing
- For measurement / monitoring test ports of the output signal
- DVB CSA Simulcrypt scrambling
Priponke
Tangram vhodni moduli za procesirenje

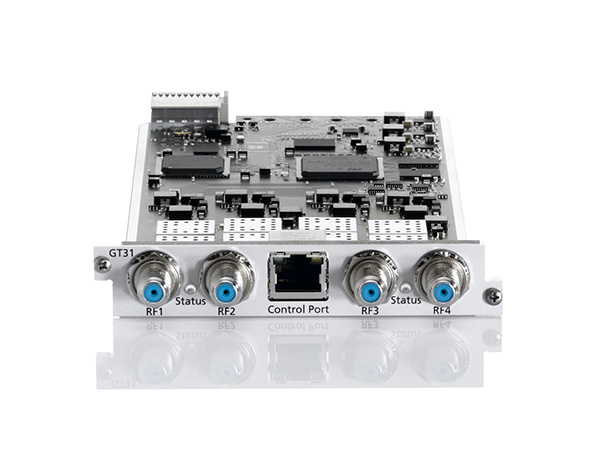

GT31W – DVB Gateway
- vhod 4xDVB-S/-S2/-T/-T2/-C
- MPTS/SPTS streaming (CBR ali VBR)
- Multi transport stream reception for DVB signals
- Up to 4 DVB-S/S2/C/T/T2/ISDB-T RF inputs
- DVB/ARIB transport stream processing
- RTP/ IP FEC output stream protection
- High density reception 24 transponder in 1 RU
- Demultiplex MPEG-2/MPEG-4 signals for SPTS transmission
- SPTS and MPTS streaming (CBR or VBR)
- UDP and RTP MPEG transport stream over IP protocol
Priponke

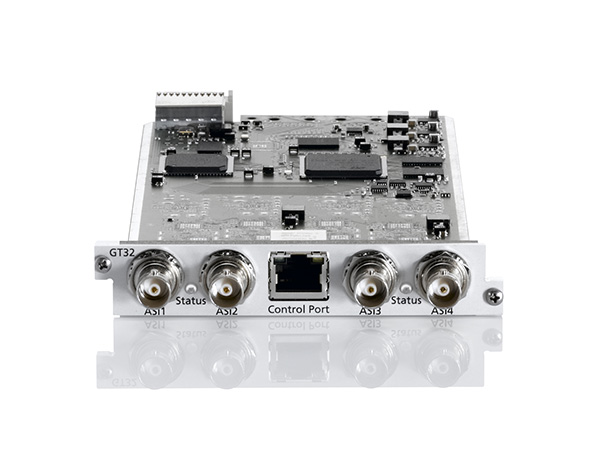

GT32W - 4xASI-IP- in/out
- 4x ASI input or output, each BNC port configurable as input or output
- PID remapping and filtering
- RTP/ IP input streaming with FEC error correction
- DVB/ARIB transport stream processing
- Demultiplexing from MPTS to SPTS
- High density 24 ASI in or out in 1 RU
- Supports IP input and output streaming (CBR or VBR)
- Supports 188byte and 204byte packet size
Priponke
GT 34 8x/16xDVB-S/S2 IP Gateway
- DVB-S/S2 – IP gateway for IPTV, CATV and multiscreen solutions
- Reception of up to 16x DVB-S/S2 satellite transponders via 4 RF-inputs
- For saving cabling costs integrated SAT multiswitch
- Professional DVB transport stream processing
- SPTS and MPTS streaming (CBR or VBR)
- UDP and RTP MPEG transport stream over IP protocol
- High-density reception of 96 transponders in 1 R
Priponke

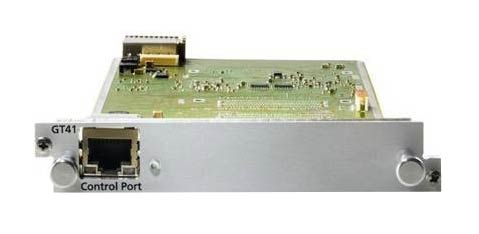

GT 41 universalni IP procesni modul
- multiplexing/remultiplexing MPTS <> SPTS streams and scrambling of content.
- MPTS <-> SPTS IP Gateway
- DVB Scrambling for IPTV out
- DVB/ARIB transport stream processing
- Supports MPEG-2 H.262 and MPEG-4 H.264 scrambling (SD & HD)
- SPTS/MPTS Streaming and Reception via IP (CBR or VBR)
- Dedicated Ethernet interface for CAS connection
- DVB CSA Simulcrypt scrambling
- High flexibility scrambling on PID Level
Priponke

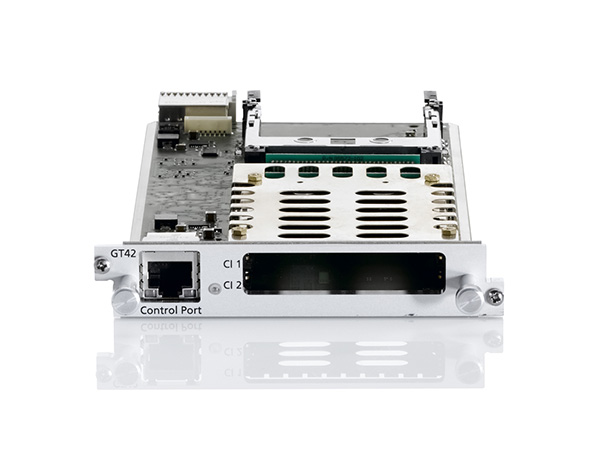

GT42W – 4xCI module (Multi Channel Decryption)
- 4 Common Interface (DVB-CI) slots per module
- CAM watchdog - auto reset on descrambling failures
- Support for all major CA systems and CAMs
- DVB/ARIB transport stream processing
- SPTS and MPTS streaming (CBR or VBR)
- Demultiplex MPEG-2/MPEG-4 signals for SPTS transmission
- High density descrampling 24 CA modules per 1RU chassis
- FEC output support - IP error protection
Priponke

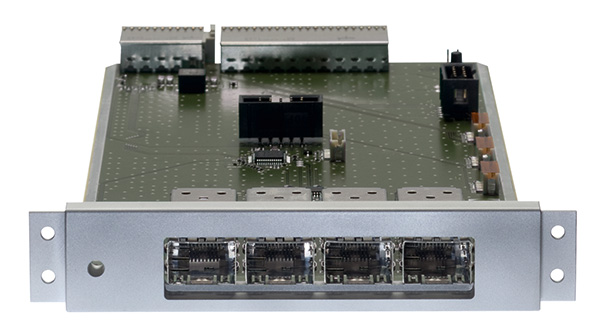

GT12W – SFP Switch extention module 4x SFP slot
- 4x SFP slots for optical or electrical access
- High flexibility for bandwidth extension
- High reliability by port and service redundancy for external connection (main/backup)
- Support of standard SFPs
- Bandwidth Port Monitoringon
Priponke
Blue Line Edge Series

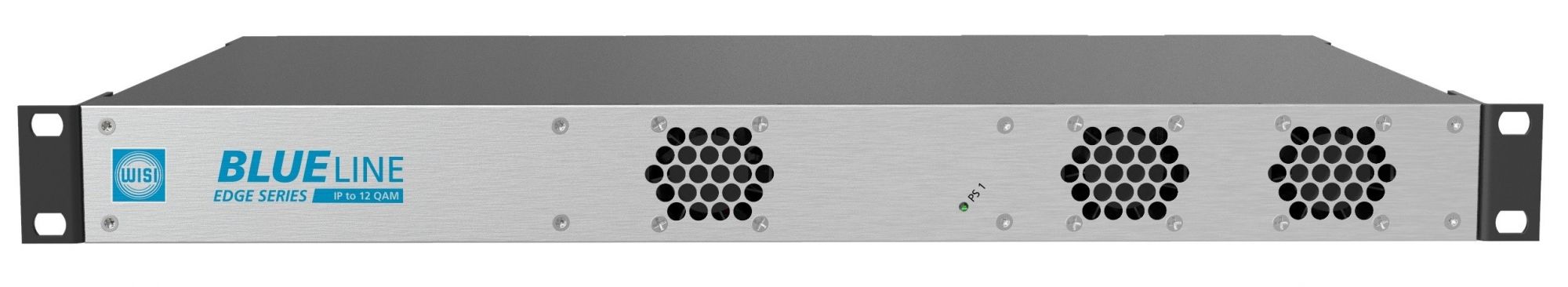

GT BLE 23
Reception of IP transport streams, processing and modulation in up to 12 QAM channels, single power supply.
Priponke

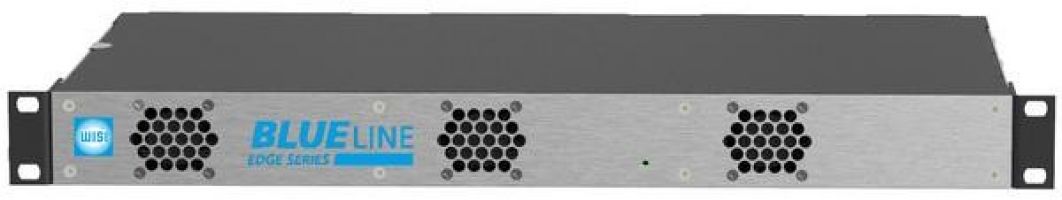

GT BLE 24D
Reception of IP transport streams, processing and modulation in up to 16 COFDM channels, single power supply.
