SAT delilniki aktivni in pasivni
Profesionalna rešitev pri uporabi glavnih postaj.
| Type | Attenuation dB |
Ampl dB |
Output level*1 | Noise figure |
| LLSS 4A*2 | - | +2 | max. 85 dBµV | max. 7 dB |

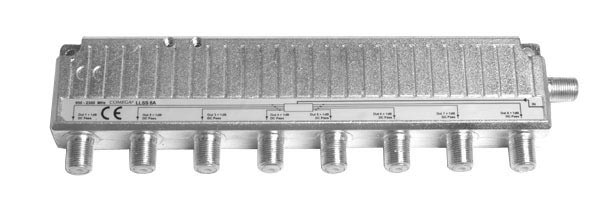

| LLSS 8A*2 | - | +1 | max. 85 dBµV | max. 7 dB |
* 2 CTB/CSO < 60 dB with 42 channel CENELEC
Return loss: Typ 10 dB - isolation typ 30 dB
Voltage: 12-18V DC/40mA
| Insertion loss (dB) | Isolation OUT-OUT | |||||||||
| Frequency (MHz) | 5-40 | 40-1000 | 1000-1750 | 1750-2050 | 2050-2400 | 5-40 | 40-1000 | 1000-1750 | 1750-2050 | 2050-2400 |
| BSS 02 | <4.5 | <4.8 | <5.5 | <6.5 | <7.0 | >17 | >22 | >20 | >20 | >20 |
| BSS 03 | <7.5 | <8.0 | <9.5 | <10.5 | <11.5 | >18 | >21 | >20 | >20 | >20 |
| BSS 04 | <8.5 | <9.0 | <10.5 | <12.0 | <13.0 | >20 | >22 | >20 | >20 | >20 |
| BSS 06 | <12.0 | <13.0 | <14.5 | <16.5 | <17.5 | >20 | >22 | >20 | >20 | >20 |
| BSS 08 | <13.0 | <13.5 | <16.0 | <18.0 | <19.0 | >20 | >22 | >20 | >20 | >20 |
