Signia odvzemniki

Signija serija nadaljuje tradicijo profesionalne Master serije (LL...).

Priponke

1-way taps

Type no.	Tap loss	Insertion loss (typ.)				Isolation TAP-OUT (typ./min.)
	10-1300	10-470	470-862	862-1006	1006-1300	10-470	470-862	862-1006	1006-1300
SiT 1-6	6.6 (±0.6)	2.3	2.8	3.0	3.1	27/22	22/20	22/20	22/20
SiT 1-8	8.3 (±0.6)	1.7	2.1	2.4	2.8	27/22	23/20	22/20	22/20

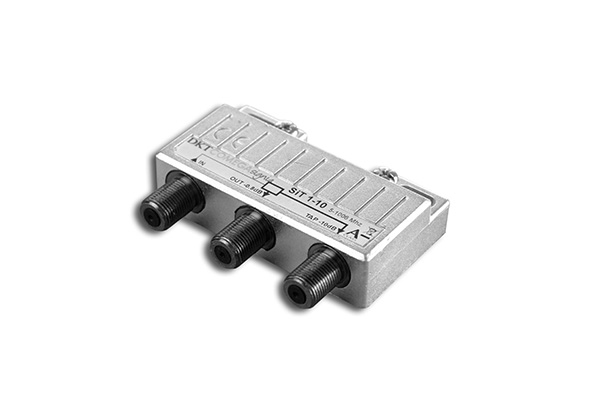

SiT 1-10	10.0 (±0.6)	1.0	1.4	1.8	2.4	33/24	30/21	30/20	25/20
SiT 1-12	12.1 (±0.6)	0.7	1.0	1.2	1.8	30/24	27/22	25/21	24/20
SiT 1-16	16.0 (±0.6)	0.6	0.8	1.0	1.6	36/28	30/23	25/22	25/21
SiT 1-20	20.0 (±0.6)	0.6	0.8	1.0	1.6	36/28	32/24	27/22	28/21
SiT 1-24	24.1 (±0.6)	0.6	0.8	1.0	1.3	36/28	35/26	30/24	30/21
SiT 1-30	30.2 (±0.6)	0.6	0.8	1.0	1.3	40/28	38/28	36/25	35/23

2-way taps

Type no.

Tap loss

Insertion loss
(typ.)

Isolation TAP-OUT
(typ./min.)

Isolation TAP-TAP
(typ./min.)

10-1300

10-470

470-862

862-1006

1006-1300

10-470

470-862

862-1006

1006-1300

10-470

470-862

862-1006

1006-1300

SiT 2-8

8.5 (±0.8)

3.2

3.5

3.7

3.9

35/26

30/22

24/21

24/20

31/25

31/22

29/21

27/21

SiT 2-10

10.2 (±0.8)

1.9

2.7

3.2

3.8

35/26

34/24

29/22

27/20

35/29

34/27

32/26

31/22

SiT 2-12

12.4 (±0.8)

1.2

1.7

2.1

2.4

36/26

34/24

29/22

27/20

40/32

38/30

36/28

34/25

SiT 2-16

16.0 (±0.8)

1.1

1.3

1.6

2.1

38/26

30/23

29/22

27/20

45/34

38/34

36/32

36/28

SiT 2-20

20.1 (±0.8)

1.1

1.4

1.6

2.1

42/28

35/24

31/22

27/20

60/35

52/35

46/33

43/31

SiT 2-24

24.0 (±0.8)

1.1

1.5

1.7

2.2

44/30

37/25

33/24

29/22

64/35

60/35

51/35

49/34

3-way taps

Type no.	Tap loss	Insertion loss (typ.)				Isolation TAP-OUT (typ./min.)				Isolation TAP-TAP (typ./min.)
	10-1300	10-470	470-862	862-1006	1006-1300	10-470	470-862	862-1006	1006-1300	10-470	470-862	862-1006	1006-1300
SiT 3-16	16.1 (±0.8)	2.0	1.9	2.2	2.7	35/24	32/22	28/21	25/20	50/34	45/32	41/32	37/30
SiT 3-20	20.1 (±0.8)	1.2	1.5	1.7	2.2	44/28	33/22	29/21	25/20	59/34	51/32	44/32	42/30

4-way taps

Type no.	Tap loss	Insertion loss (typ.)				Isolation TAP-OUT (typ./min.)				Isolation TAP-TAP (typ./min.)
	10-1300	10-470	470-862	862-1006	1006-1300	10-470	470-862	862-1006	1006-1300	10-470	470-862	862-1006	1006-1300
SiT 4-12	12.4 (±0.8)	3.7	3.8	4.1	5.0	32/24	31/22	27/20	25/20	48/35	43/32	40/30	38/28
SiT 4-16	16.1 (±0.8)	2.7	2.8	2.9	3.6	34/24	31/21	27/21	25/20	50/36	45/34	42/32	40/30
SiT 4-20	20.0 (±0.8)	1.5	1.8	2.1	2.6	43/24	40/21	30/21	27/20	52/38	47/36	45/34	43/32
SiT 4-24	24.1 (±0.8)	1.5	1.8	2.1	2.6	43/25	40/24	33/22	29/20	54/38	49/36	47/34	45/32
SiTT 4-12*	12.3 (±0.9)	-	-	-	-	-	-	-	-	43/32	36/32	34/30	32/28

6-way taps

Type no.	Tap loss	Insertion loss (typ.)				Isolation TAP-OUT (typ.)				Isolation TAP-TAP (typ./min.)
	10-1300	10-470	470-862	862-1006	1006-1300	10-470	470-862	862-1006	1006-1300	10-470	470-862	862-1006	1006-1300
SiTT 6-14*	14.3 (±1.0)	-	-	-	-	-	-	-	-	40/34	40/32	38/30	34/28

8-way taps

Type no.	Tap loss	Insertion loss (typ.)				Isolation TAP-OUT (typ.)				Isolation TAP-TAP (typ./min.)
	10-1300	10-470	470-862	862-1006	1006-1300	10-470	470-862	862-1006	1006-1300	10-470	470-862	862-1006	1006-1300
SiTT 8-15*	15.8 (±1.1)	-	-	-	-	-	-	-	-	42/36	40/32	40/30	37/28

_{* SiTT Internally terminated, no OUT port}
