Push-on Filter – TV
Ta multimedija "POF" je diplex verzija, za zagotavljanje zelo nizkega povratnega dušenja.
Priponke

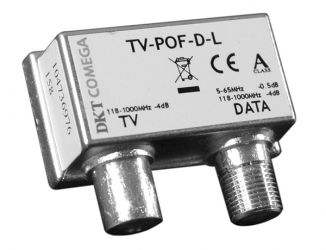

Type no. | TV POF-D-L |
Item no. | 42122 |
DATA | |
Frequency range (MHz) | 5-65, 118-1006 |
Insertion loss (IN-DATA) 5-65 MHz) | 0.5 dB |
Insertion loss (IN-DATA) 118-1006 MHz | 4.0 dB |
Isolation (DATA-TV) 5-65 MHz | > 45 dB |
Isolation (DATA-TV) 118-862 MHz | > 22 dB |
Isolation (DATA-TV) 862-1006 MHz | > 15 dB |
Connector | F-female |
TV | |
Frequency range (MHz) | 118-1006 |
Insertion loss (IN-TV) 118-1006 MHz) | 4.0 dB |
Isolation (TV-IN) 5-65 MHz | > 35 dB |
Connector | IEC-male |
General | |
Input connector | IEC-female |
Return loss* | Cat. B |
Screening effectiveness | Class A |
