PS serija
V programu DKT je več rešitev zunanje pasive od fiksne , do fleksibilne s PIM moduli in prav tako za različne vrste montaže.
Prehod napajanja izbiramo s pomočjo varovalk.
Pasiva podpira DOCSIS 3.1
PS3 – 3-port PG11 ohišje
Najbolj kompakten in prilagodljiv 2 –vejni delilnik/odvzemnik, ki je zelo primeren za montažo tudi v manjše zunanje omarice. PS3 - obstaja v dveh različicah – prilagodljiva (s PIM moduli) – s tem prihranite stroške za zalogo. Uporabimo ga lahko tudi kot "power inserter" (s PIM OB..).

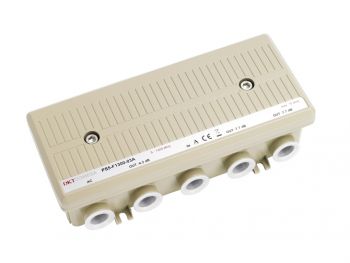

PS5 – 5-port PG11 ohišje
Ta serija je fiksna serija in ima tudi vhod za insertiranje napajanja s PG11M-AC
Pregled tipov:
- PS5-F1300-03 – 3-vejni delilnik/3-way splitter + power inserter
- PS5-F1300-03A – 3-vejni delilnik saimetrični /3-way splitter asym. + power inserter
- PS5-F1300-04 – 4-vejni delilnik/4-way splitter +power inserter
- PS5-1300-04-12 – 2-vejni odvzemnik/2-way tap 12dB + power inserter
Prednosti:
- Visok razklop , Class A
- AC_prehod toka, lahko določimo s pomočjo varovalk
- Učinkovito namestitev in zmanjšanje operativnih stroškov(OPEX) s pomočj PIM modulov
- 10A prehod toka
| Type | Frequency range | PS3B-10A - 02 | PS3B-10A – 1-7 | PS3B-10A – 1-11 | PS3B-10A – 1-16 |
| Insertion loss (IN-OUT) | 5-1000 MHz | 4.3 ± 1.0 dB | 3.1 ± 1.0 dB | 2.4 ± 1.0 dB | 1.6 ± 1.0 dB |
| Tap loss (IN-TAP) | 5-1000 MHz | - | 7.8 ± 1.3 dB | 11.0 ± 1.0 dB | 15.4 ± 1.0 dB |
| Isolation (OUT-OUT) | 5-10 MHz | ≥ 20 dB | ≥ 20 dB | ≥ 23 dB | ≥ 28 dB |
| 10-470 MHz | ≥ 25 dB | ≥ 25 dB | ≥ 26 dB | ≥ 26 dB | |
| 470-862 MHz | ≥ 23 dB | ≥ 20 dB | ≥ 25 dB | ≥ 26 dB | |
| 862-1000 MHz | ≥ 20 dB | ≥ 18 dB | ≥ 22 dB | ≥ 23 dB | |
| Return loss | 5-10 MHz | ≥ 16 dB | |||
| 10-1000 MHz | Cat B*1 | ||||
| Connectors | PG11 thread - optional 5/8” | ||||
| Power pass | Max. 10A | ||||
| Hum modulation (64V, 6A) | < - 70 dB | ||||
| Group delay (Δf 2 MHz) | 7-10 MHz | < 12 ns | |||
| 10-25 MHz MHz | < 3 ns | ||||
| 25-1000 MHz MHz | < 1.5 ns | ||||
| Screening effectiveness | Class A*2 | ||||
| Dimensions (mm) | 150 x 90 x 55 mm | ||||
| Weight (loose) | 0.5 kg | ||||
| Weight inner colli(10-pack) | 6.3 kg | ||||
| Weight master colli(30-pack) | 19.6 kg | ||||
| *1 Return loss according to CENELEC EN-50083-4: Cat. A: 5-40 MHz ≥ 22 dB, 40-1750 MHz min. 14 dB ÷ 1.5/oct. Cat. B: 5-40 MHz ≥ 18 dB, 40-1750 MHz min. 10 dB ÷ 1.5/oct. Cat. C: 5-40 MHz ≥ 14 dB, 40-1750 MHz min. 10 dB ÷ 1.5/oct. Cat. D: 5-1750 MHz ≥ 10 dB |
*2 According to CENELEC EN-50083-2 Class A requirements for the electromagnetic compatability of equipment: 5-30 MHz > 85 dB 30-300 MHz> 85 dB 300-470 MHz> 80 dB 470-950 MHz> 75 dB 950-1000 MHz> 55 dB |
| Type | Plug-in modules | Port A | Port B | Port C |
| PIM 0A | In | 0.5 | AC in | |
| Bridge | PIM 0B | In | AC in | 0. |
| PIM 0C | AC in | In | 0.5 | |
| Splitter | PIM 4 | In | 4.0 | 4.0 |
| Tap*1 | PIM 1-7 | In | 7.0 | 2.5 |
| PIM 1-10 | In | 10.0 | 1.7 | |
| PIM 1-13 | In | 13.0 | 1.2 | |
| PIM 1-16 | In | 16.0 | 1.0 | |
| PIM 1-19 | In | 19.0 | 1.0 | |
| PIM 1-22 | In | 22.0 | 1.0 | |
| PIM 1-26 | In | 26.0 | 1.0 | |
| Stop-filter | PIM RPS 5-15 | - | In | 5-15MHz > 45 dB 25-862 MHz < 1.2 dB |
| PIM RPS 5-30 | - | In | 5-30 MHz > 45 dB 47-862 MHz < 1.2 dB | |
| PIM RPS 5-65 | - | In | 5-65 MHz > 45 dB 87-862 MHz < 1.2 dB | |
| Diplexer | PIM 5-30/47-1000 | In | 5-30 MHz < 1.3 dB 47-862 MHz > 30 dB | 5-30 MHz > 40 dB 47-862 MHz < 1.2 dB |
