19“ oddajniki
Poleg modularne rešitve Optopus – so na razpolago tudi ostali 19“ »stand alone« oddajniki

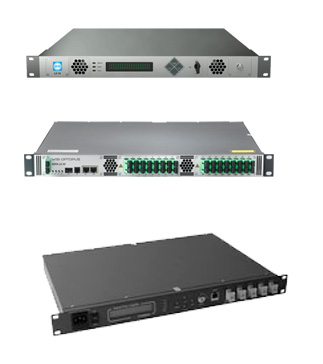

19“ oddajniki 1550 Stand alone - 19“ Transmitters |
|
| LX52 | Base Unit Optopus, 2 slots for modules (LX11xx, LX12xx, LX13xx, LX15xx, LX22xx,LX30xx), 2 slots for power supplies LXPSxx |
| LXPS A230 | AC Power Supply for LX35x, LX37x and LX52,90-230 VAC Straight |
| LXPS B230 | AC Power Supply for LX35x, LX37x and LX52,90-230 VAC Angled |
| LXPS 0048 | DC Power Supply for LX35x, LX37x and LX52, 48 VDC |
| OTXi | Stand alone, 1550nm, direct moduleted optical transmitter 10dBm/10mW |
Eksterno modulirani oddajniki - Externally modulated Transmitters 1HE |
|
| LX10K7005 | Optical Transmitter, Typ K, 40km, 21dBm SBS, WISI channel load, 2x7 dBm, SC/APC Rear, 1555+/-1nm, AC primary, slot for redundant power supply |
| LX10S7005 | Optical Transmitter, Typ S, 65km, 16dBm SBS, WISI channel load, 2x7 dBm, SC/APC Rear, 1555+/-1nm, AC primary, slot for redundant power supply |
| LX10S B001 | Optical Transmitter, Typ S, 65km, 16dBm SBS, WISI channel load, 2x10 dBm, SC/APC Rear, 1555+/-1nm, AC primary, AC Secondary |
| LX10L8005 | Optical Transmitter, Typ L, 25km, 15dBm SBS, up to 2800 MHz, WISI channel load, 2x8,5dBm, SC/APC Rear, 1555+/-1nm, AC primary, slot for redundant power supply |
| LX10P1000 | AC power supply module for LX10 |
| LX10P2000 | DC power supply module for LX10 |
