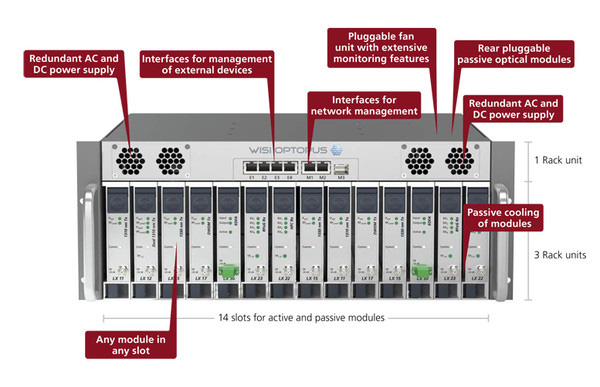

Optopus - modularni sistem
Je fleksibilna varianta za vse vrste optičnih omrežij HFC, FTTx.
- Modularen koncept omogoča razne rešitve
- Modul lahko menjamo med delovanjem
- Pasivna zadnja plošča - predinstalirana – vse povezave na plošči, za enostavno menjavo modulov
- Napreden management za instalacijo in delovanje
- Integrirani WDM filtri, kar prihrani prostor in čas
- Redundantni usmernik

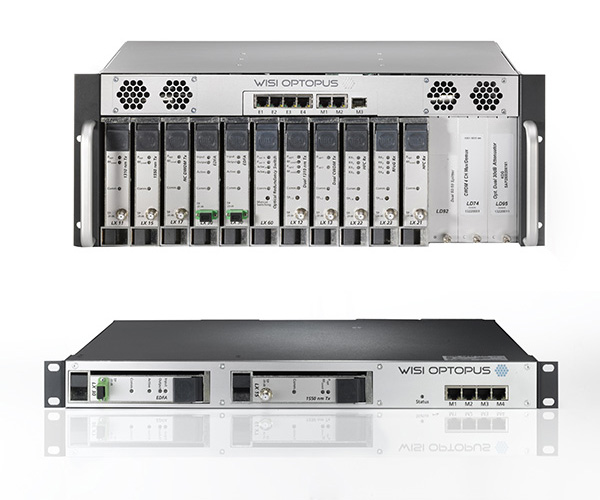

Osnovna ohišja - Chassis and Accessories |
|
| LX50 0230 | Base Unit Optopus, 14 slots, 230V AC |
| LX50 0048 | Base Unit Optopus, 14 slots, 48V DC |
| LX55 0230 | 230V AC Redundant Power Supply for LX50 0230 |
| LX55 0048 | 48V DC Redundant Power Supply for LX50 0048 |
| LX52 | Base Unit Optopus, 2 slots for modules LXxx, 2 slots for power supplies LXPSxx |
| LX24S 3200 | Multidiode receiver 32 inputs |
Pribor - Accessories |
|
| LXPS A230 | AC Power Supply for LX35x, LX37x and LX52,90-230 VAC Straight |
| LXPS B230 | AC Power Supply for LX35x, LX37x and LX52,90-230 VAC Angled |
| LXPS 0048 | DC Power Supply for LX35x, LX37x and LX52, 48 VDC |

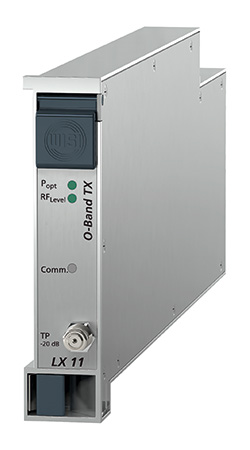

Optični oddajniki modularni - Optical Transmitters Modular Concept |
|
| LX11 S 2600 | 1310nm 1,2 GHz Transmitter 6dBm(4mW) |
| LX11 S 2800 | 1310nm 1,2 GHz Transmitter 8dBm(6mW) |
| LX11 S 2000 | 1310nm 1,2 GHz Transmitter 10dBm(10mW) |
| LX11 S 2300 | 1310nm 1,2 GHz Transmitter 13dBm(20mW) |
Optični oddajniki dual modularni - Optical Dual- Transmittersl Modular Concept |
|
| LX12 S 0300 | 1310nm 1,2 GHz Dualtransm. 3dBm(2mW) |
| LX12 S 0600 | 1310nm 1,2 GHz Dualtransm. 6dBm(4mW) |
| LX12 S 0800 | 1310nm 1,2 GHz Dualtransm. 8dBm(6mW) |
| LX12 S 1000 | 1310nm 1,2 GHz Dualtransm. 10dBm(10mW) |
| LX12 S 1300 | 1310nm 1,2 GHz Dualtransm. 13dBm(20mW) |
CWDM US oddajniki - Upstream Transmitters Modular Concept |
|
| LX13 S 0512 | Dual CWDM Upstream Transmitter 2x5dBm 1471/1491 |
| LX13 S 0534 | Dual CWDM Upstream Transmitter 2x5dBm 1511/1531 |
| LX13 S 0556 | Dual CWDM Upstream Transmitter 2x5dBm 1551/1571 |
| LX13 S 0578 | Dual CWDM Upstream Transmitter 2x5dBm 1591/1611 |
| LX13 S 0590 | Dual CWDM Upstream Transmitter 2x5dBm 1431/1451 |
| LX13 S 05AB | Dual CWDM Upstream Transmitter 2x5dBm 1391/1411 |
Oddajniki 1550 nm modularni - Transmitters 1550nm Modular Concept |
|
| LX15 S 1200 | 1550nm Transmitter 10 dBm(10mW), 16 dBm SBS, 25 km |
| LX15 S 1201 | 1550nm Transmitter 10 dBm(10mW), 21 dBm SBS, 15 km |
| LX15 S 1202 | 1550nm Transmitter 10 dBm(10mW), 16 dBm SBS, 45 km |
| LX15 S 1203 | 1550nm Transmitter 10 dBm(10mW), 17 dBm SBS, 20 km |
| LX15 S 4270 | FULLBAND DUAL Transmitter 2 x 5 dBm, 14 dB SBS, CH27 (1555nm) |
Optični sprejemnik modularni Optical Receivers Modular Concept |
|
| LX21 S 0100 | Downstream Receiver |

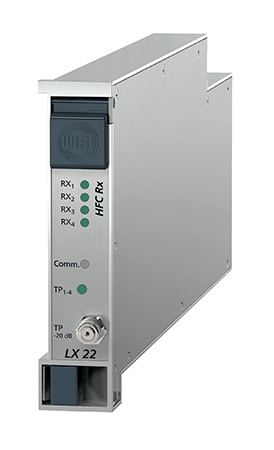

| LX22 S 0400 | HFC Upstream Receiver Standard (-17…0 dBm) |
| LX22 H 0400 | HFC Upstream Receiver High Sensitivity (-28…-10 dBm) |

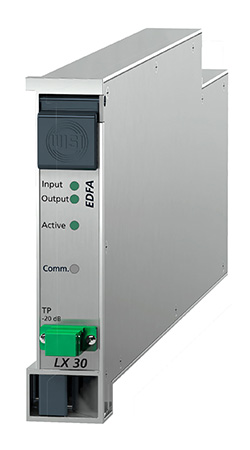

EDFA - Optical Amplifier Modular Concept |
|
| LX30 S 1401 | Optical Amplifier 1x14dBm |
| LX30 S 1402 | Optical Amplifier 2x14dBm |
| LX30 S 1701 | Optical Amplifier 1x17dBm |
| LX30 S 1702 | Optical Amplifier 2x17dBm |
| LX30 S 1704 | Optical Amplifier 4x17,5dBm |
| LX30 S 2101 | Optical Amplifier 1x21dBm |
| LX30 S 2102 | Optical Amplifier 2x21dBm |
| LX32 L 1708 | Optical Amplifier 8x17dBm LC/APC |
| LX32 L 2008 | Optical Amplifier 8x20dBm LC/APC |
