ACP - Confree serija

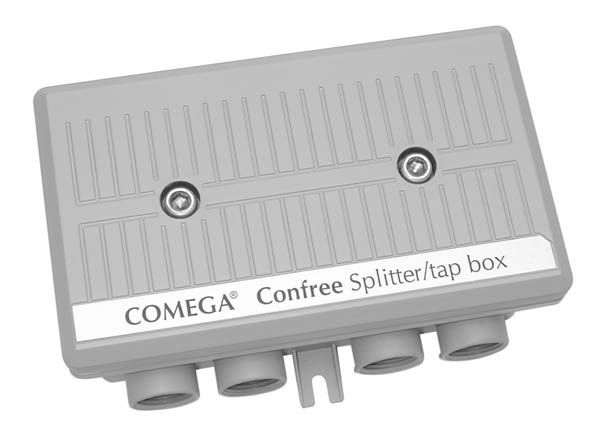

ACP3 P1 je dvovejni delilnik ali 1-vejni odvzemnik vključno s "power inserterjem"
ACP4 P2je trivejni delilnik ali dvovejni odvzemnik z veloko možnostjo konfiguracij s pomočjo PIN modulov.
Prednosti
- Fleksibilnost s PIM moduli
- Power inserter opcija
- Ohišje Class A
| Specification - ACP3 P1 | |||
| PIM type | Out 1 ± 1.0 dB | Out 2 ± 0.5 dB | |
| PIM 0A | 0.6 | - | |
| PIM 0B | - | 0.6 | |
| PIM 4 | 4.4 | 4.4 | |
| PIM 1-7 | 7.9 | 3.0 | |
| PIM 1-10 | 10.9 | 2.4 | |
| PIM 1-13 | 13.4 | 1.7 | |
| PIM 1-16 | 15.9 | 1.4 | |
| PIM 1-19 | 18.9 | 1.3 | |
| Specification - ACP4 P2 | |||
| PIM type | Out 1 ±1.0 dB | Out 2 ±1.0 dB | Trunk output ±0.5 dB |
| PIM 4 + PIM 4 | 4.5 | 8.5 | 8.5 |
| PIM 1-7 + PIM 4 | 8 | 8 | 8 |
| PIM 1-10 + PIM 1-7 | 11 | 13 | 4 |
| PIM 1-13 + PIM 1-13 | 13.5 | 14.5 | 3 |
| PIM 1-16 + PIM 1-16 | 16 | 17 | 2.2 |
| PIM 1-19 + PIM 1-19 | 19 | 19.5 | 2 |
|
Frequency range: |
5-1000 MHz 20 dB (40-1000 MHz -1.5 dB/oct.) Max 10 A Class A - min. 85/75 dB PG11 thread - optional 5/8 or cable shells 70 dB |
Pribor za Confree
Accessories for CONFREE including Rubber cap, RF shielding plate, Power inserter and PG11A adaptors.
The rubber cap increases the IP to IP66 and it improves protection against steam, dust and other enviromental influences. The RF shielding plate improve RFi to above Class A screening utilizing the CONFREE cable shells. The RF shielding plate is not necessary when using PG11 connectors.
The PG11M-AC Power Inserter makes it possible to feed trunk passives locally to provide power for remote line feeded amplifiers.
